L2 - R4.6 Cup Rinser Leaking

According to the problem analysis result done by CCA, you can directly begin the subsequent troubleshooting process from the corresponding potential root cause.

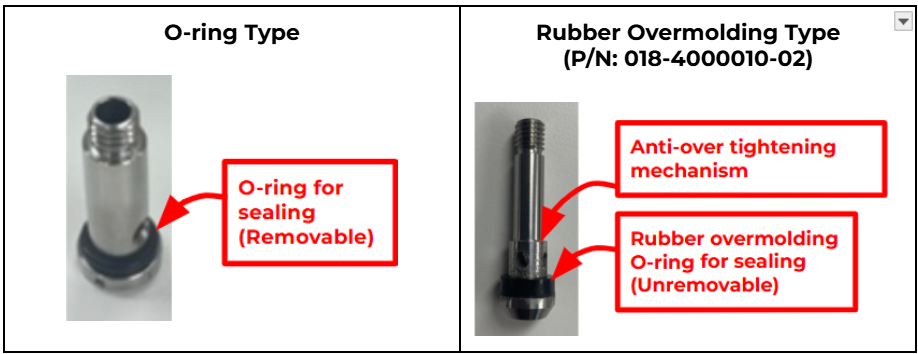

STEP 1 - Verify the cup rinser sealing bolt type to decide the next step.

• Result 1 - O-ring type.
  Start STEP 2.


• Result 2 - Rubber overmolding type.
  Start STEP 3.

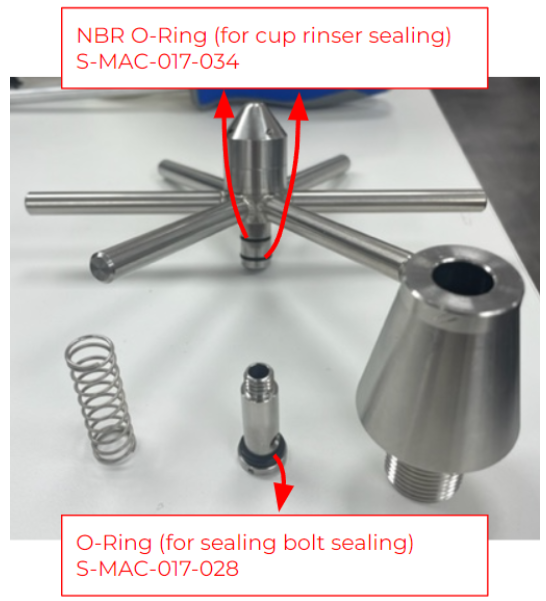

STEP 2 - Replace the sealing bolt O-ring & other 2 O-rings (see SOP here), and verify the cup rinser for any leaks or malfunctions.

• Result 1 - Functions are fine, and no leak.
  Issue closed. (Root cause: Cup rinser sealing bolt o-ring failure)


• Result 2 - Still leaking.
  Verify the leaking point and fix it. Escalate to PSE if the root cause cannot be identified.

STEP 3 - Replace the cup rinser sealing bolt, and verify the cup rinser for any leaks or malfunctions.

• Result 1 - Functions are fine, and no leak.
  Issue closed. (Root cause: Cup rinser sealing bolt failure)


• Result 2 - Still leaking.
  Verify the leaking point and fix it. Escalate to PSE if the root cause cannot be identified.
